Directional Antenna | LPDA 12Dbi
₹1,999.00
Elevate your network with our LPDA 12dBi directional antenna. It boasts a 12dB gain, supporting all 50 Ohm cellular amplifier systems, and is compatible with all Indian carriers. This outdoor cellular antenna is designed for stationary use, capturing existing outdoor signals in a directional 45-degree pattern. Equipped with N-Type connectors, it ensures seamless high-frequency data transfer, making it the ideal choice to enhance your 3G/4G LTE signals and optimize network performance for multiple devices
Description
Title:
Directional Antenna Cell Phone Yagi Antenna 12dBi High Gain 3G / 4G LTE/Wi-Fi Universal Fixed Mount Outdoor LPDA Antenna (698-960/1710-2700 MHz)
About this item:
【High Gain】The directional yagi-style antenna features 12db gain, work with all 50 Ohm cellular amplifier systems, compatible with all Indian carriers, and it supports multiple devices so you could enhance your 3G/4G LTE signals.
【Outside Cellular Antenna】The Directional Roof Antenna is designed for use on stationary objects such as buildings or houses by capturing existing outdoor cellular signal in a directional, 45-degree pattern. It features N-Type connectors for easy transfer of high-frequency information.

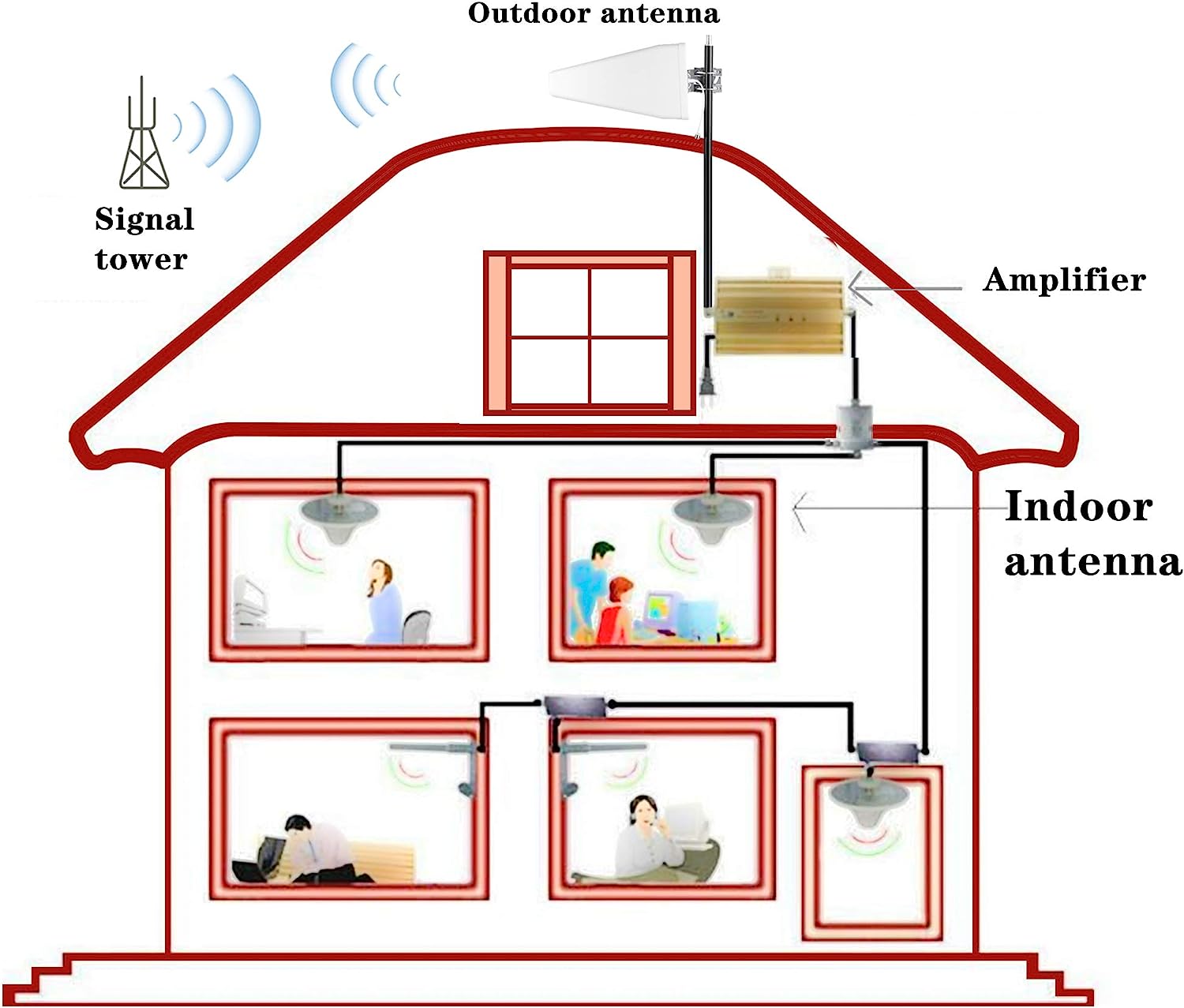

【Highest Quality】The cell antenna frequencies range is 698-960mhz & 1710-2700mhz . This Wideband antenna features an N-Female connector that facilitates the transfer of high-frequency information. IMPORTANT NOTE: This product is outdoor antenna only, it must work together with signal booster/repeater, It will need extension cable to connect the outdoor antenna to signal booster.

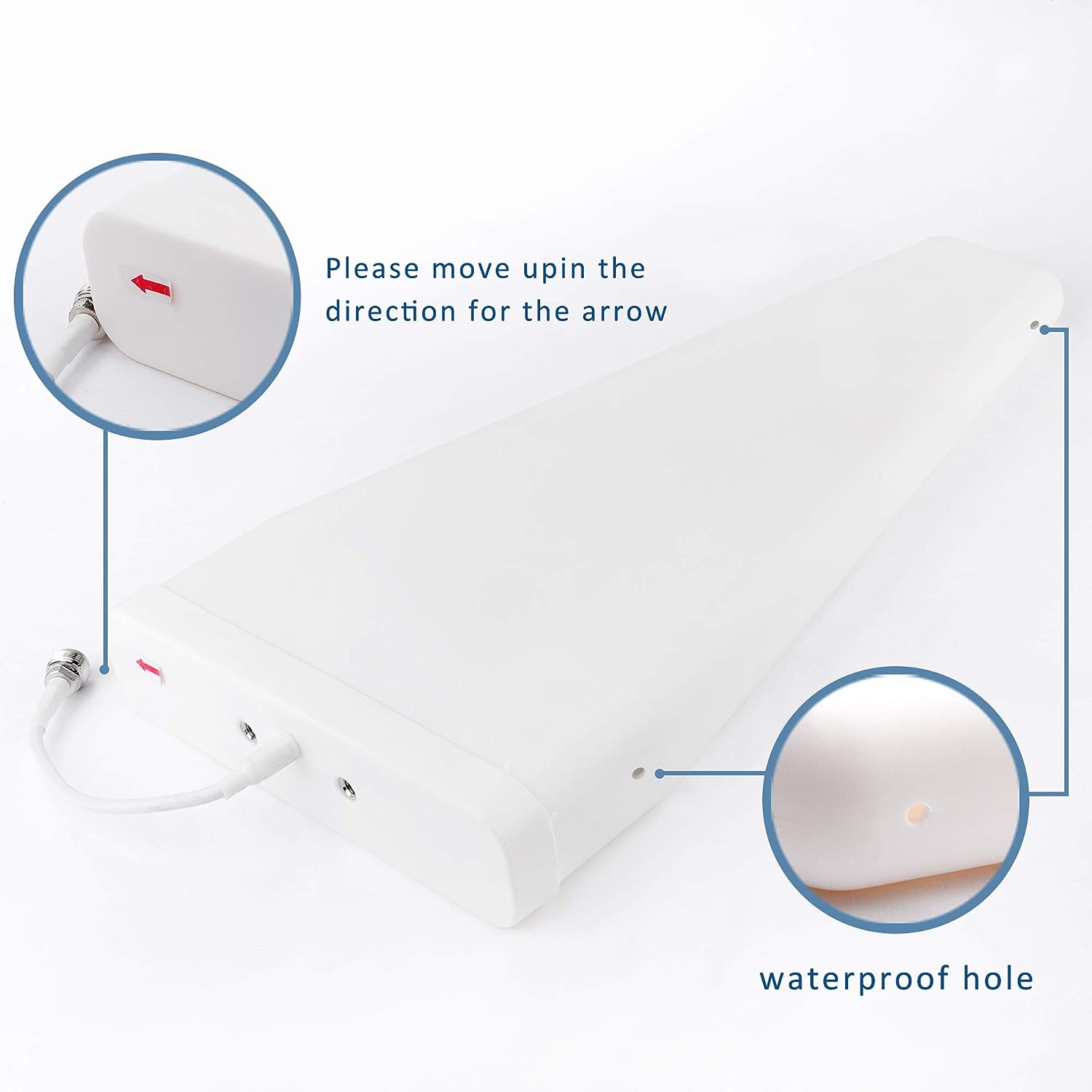

【Waterproof Structure】This Wideband directional antenna from features a rugged waterproof structure that’s designed to withstand damage from the elements. This directional antenna must be pointed toward a cell tower. The antenna does not come with mast pole mount.
【Compatible】Compatible with any 2G, 3G, 4G, LTE, xLTE, AWS, GSM & CDMA Broadband Router, Modem, etc. Also compatible with 2.4 GHz Wi-Fi and 900 MHz radio systems.
Product Description:
698-960/1710-2700MHz 9/11dB Directional Mount Outdoor LPDA Antenna
Electrical Specifications:
Frequency Range: 698-960 MHz; 1710-2700 MHz
Gain: 9/11dB
VSWR: ≤2.0 ; ≤1.5
Front to Back Ratio: ≥15 dB
Polarization: Vertical
3rd PIM (2×43 dBm): ≤-140 dBc
Horizontal Beamwidth: 45°
Vertical Beamwidth: 40°
Input Impedance: 50 Ω
Max.Power: 50 W
Lightning Protection: DC Ground
Mechanical Specifications
Connector Type: N-female
Dimensions: 400×210*50 mm
Weight: 0.59 kg
Reflector Material: Aluminum
Radome Material: ABS
Operational Temperature: –40°C to +65 °C
Additional information
| Weight | 0.500 kg |
|---|---|
| Dimensions | 30 × 10 × 5 cm |
